Cut To Length Lines

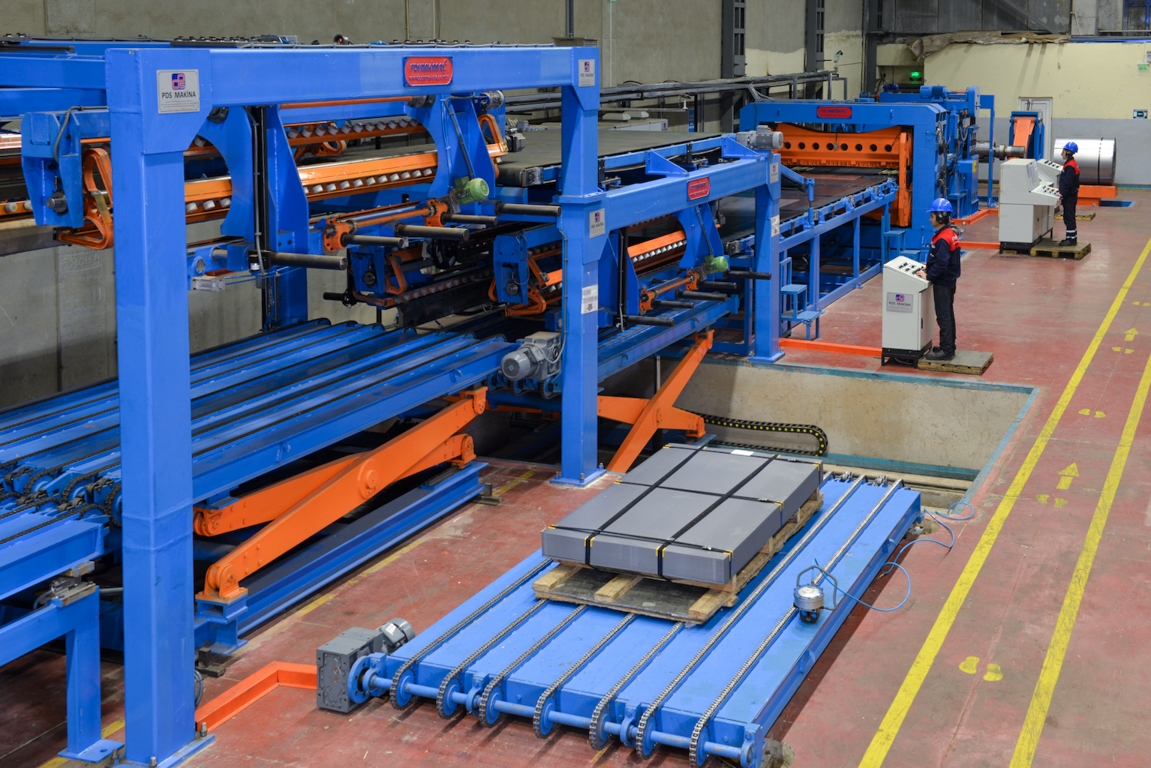

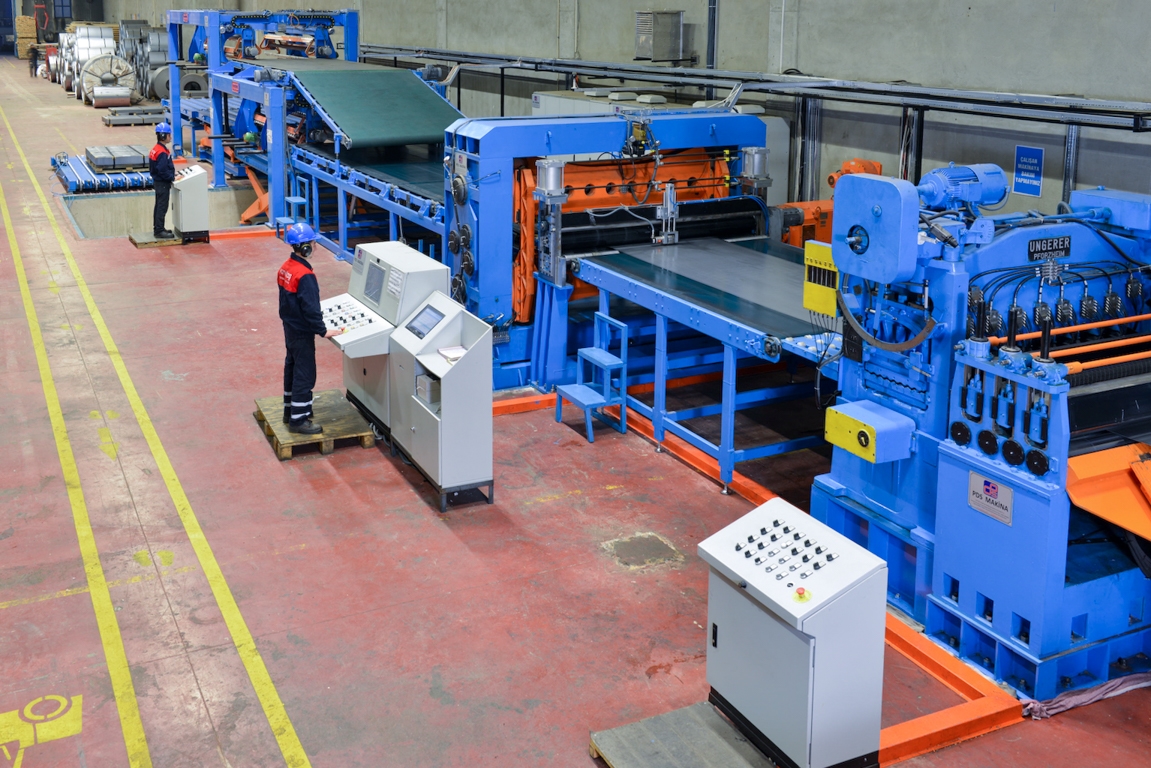

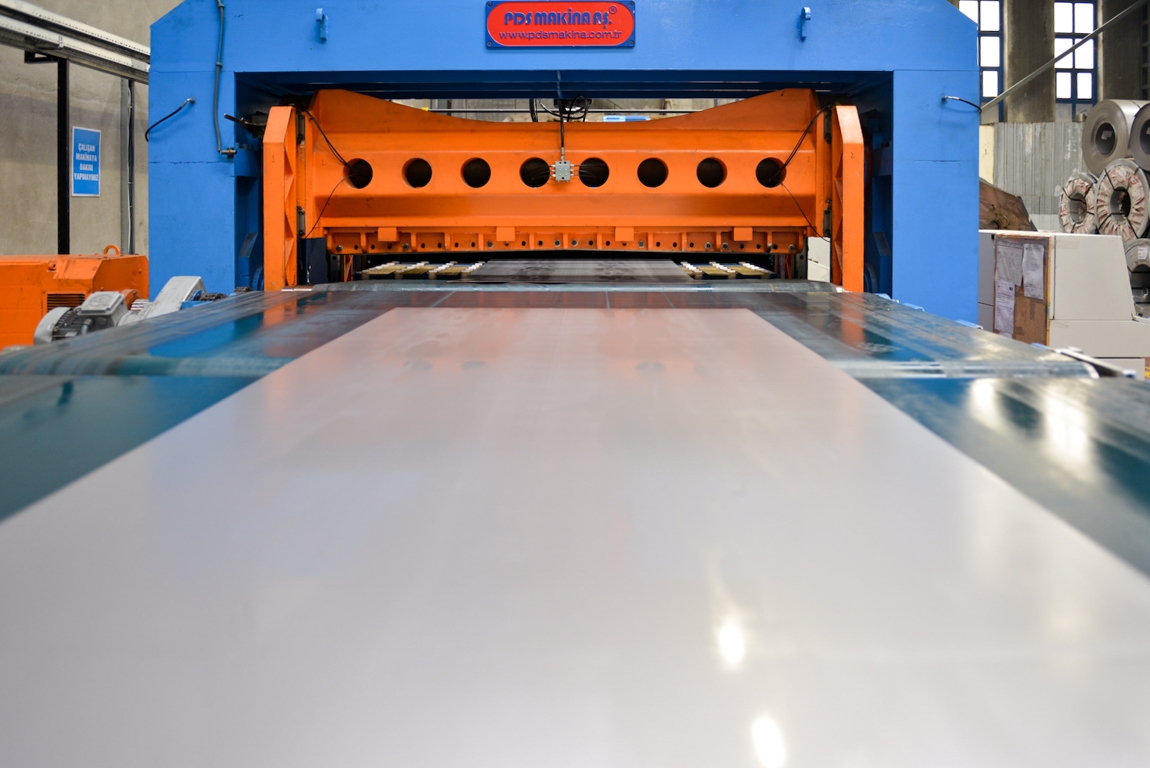

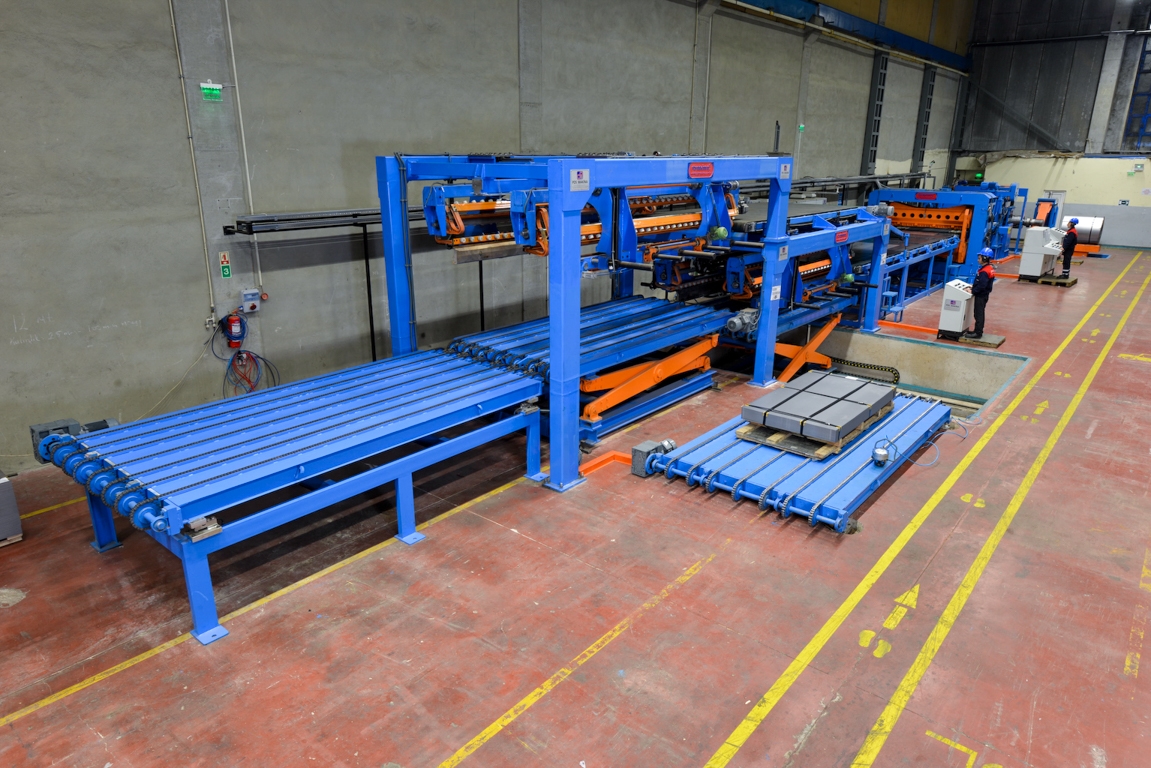

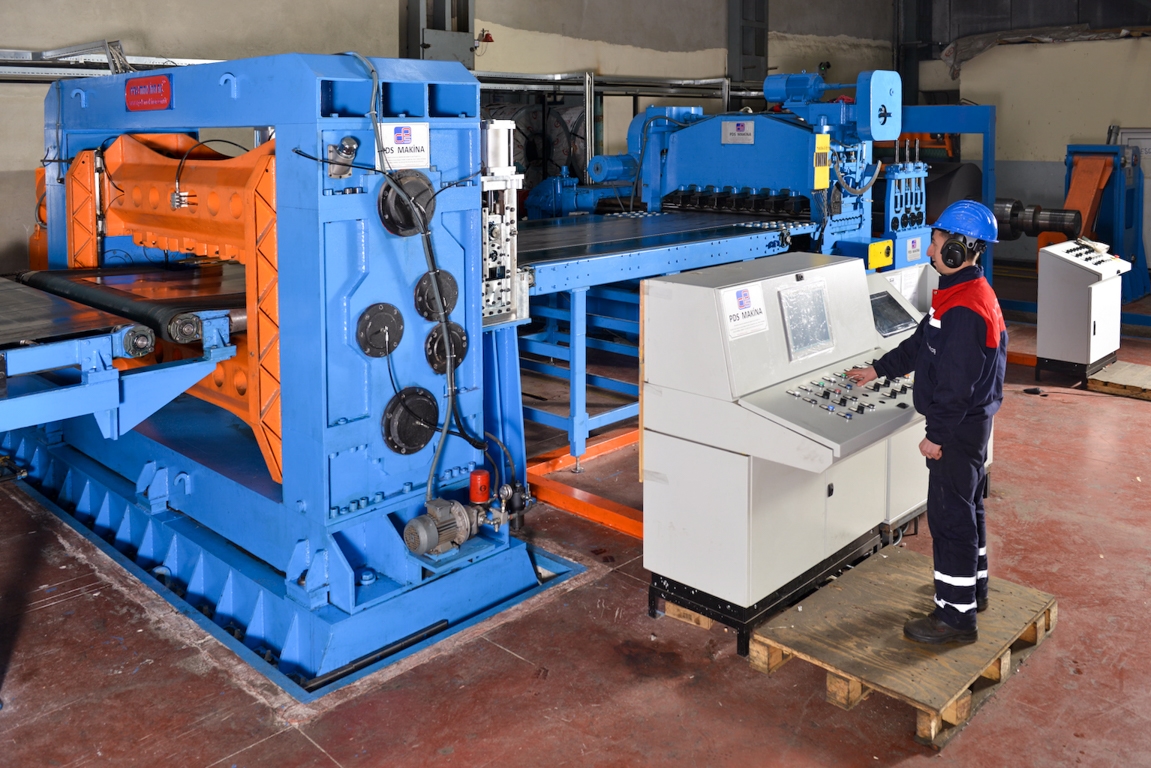

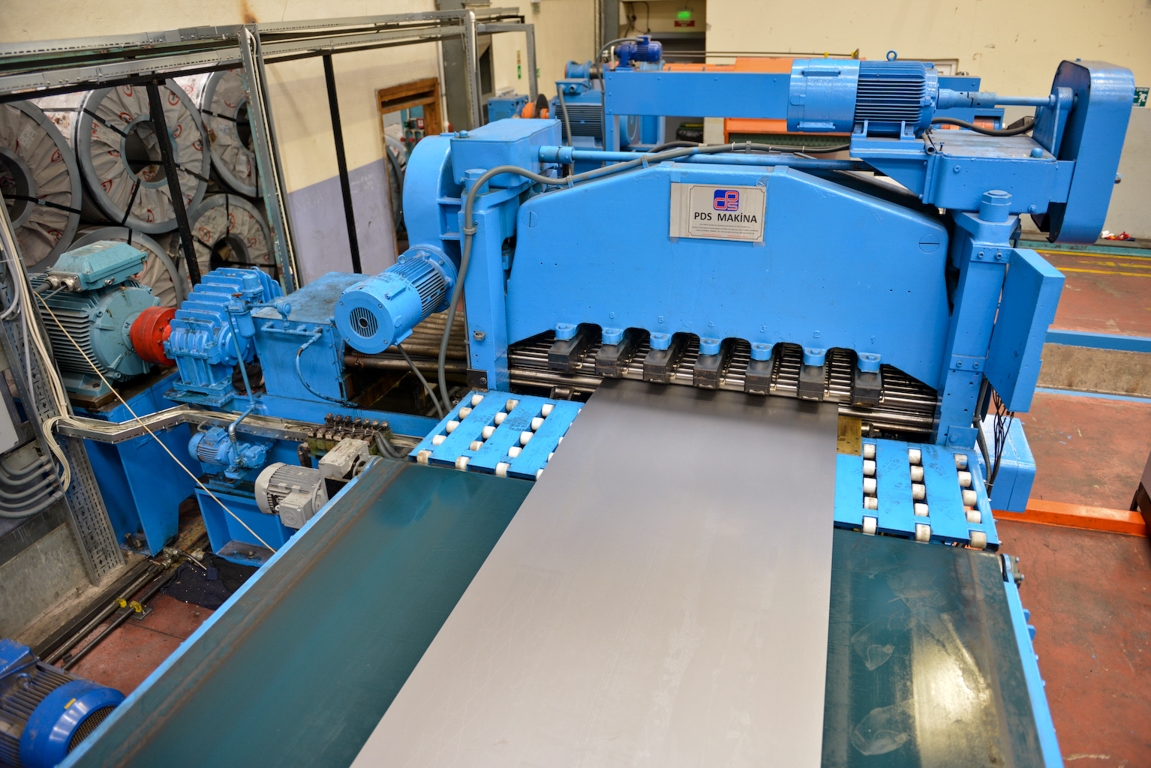

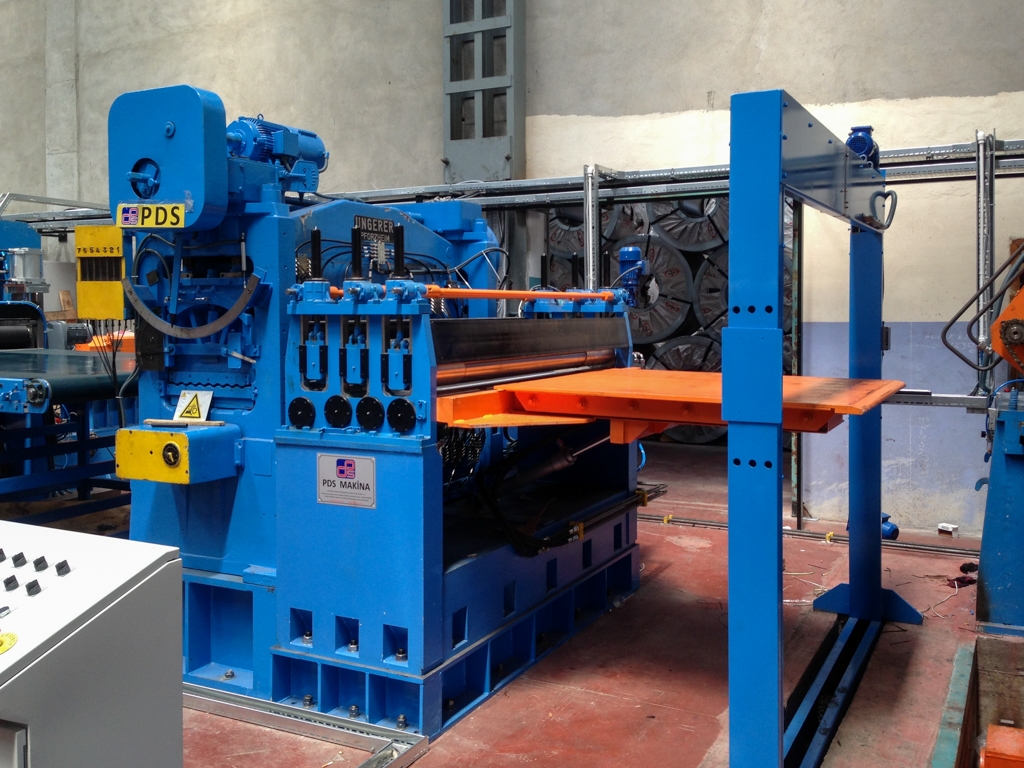

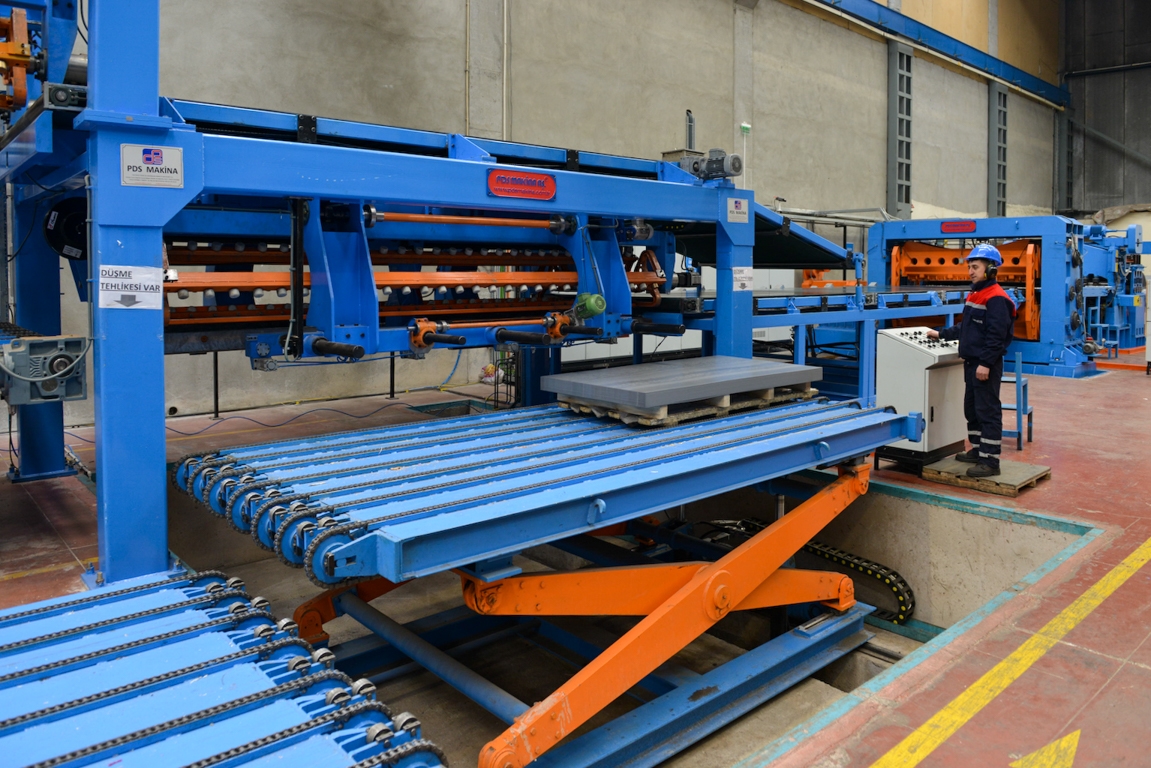

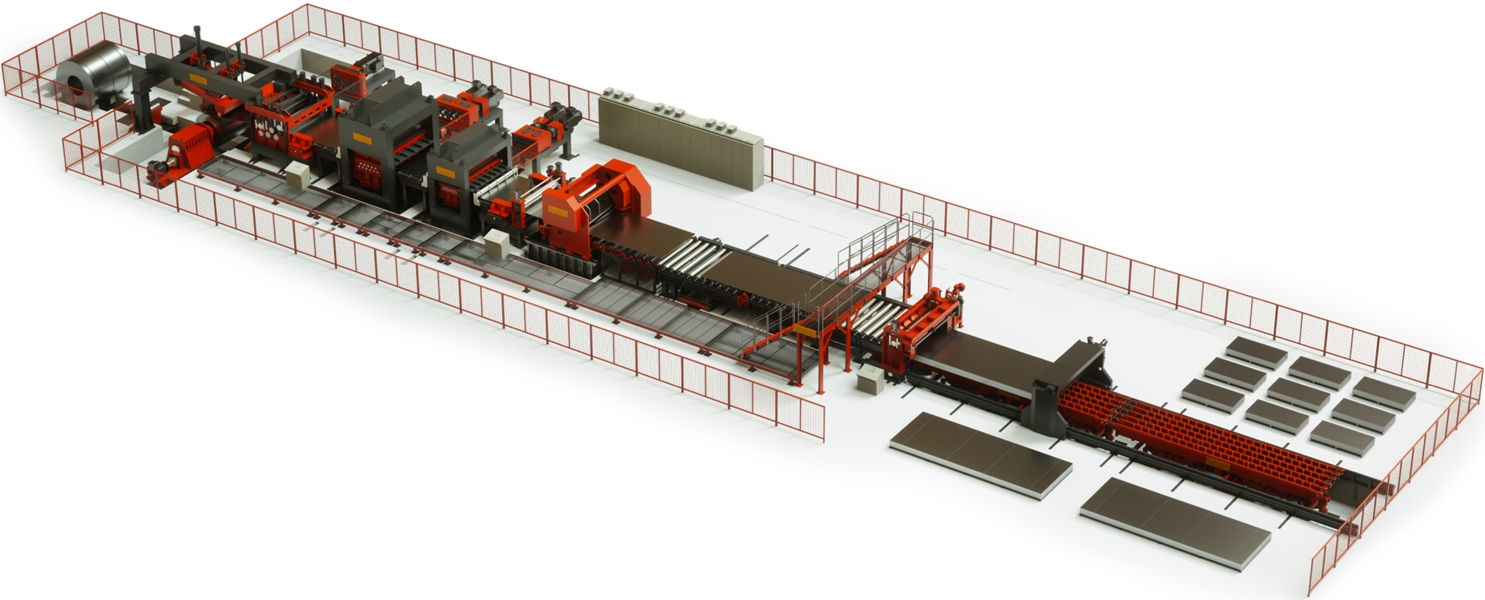

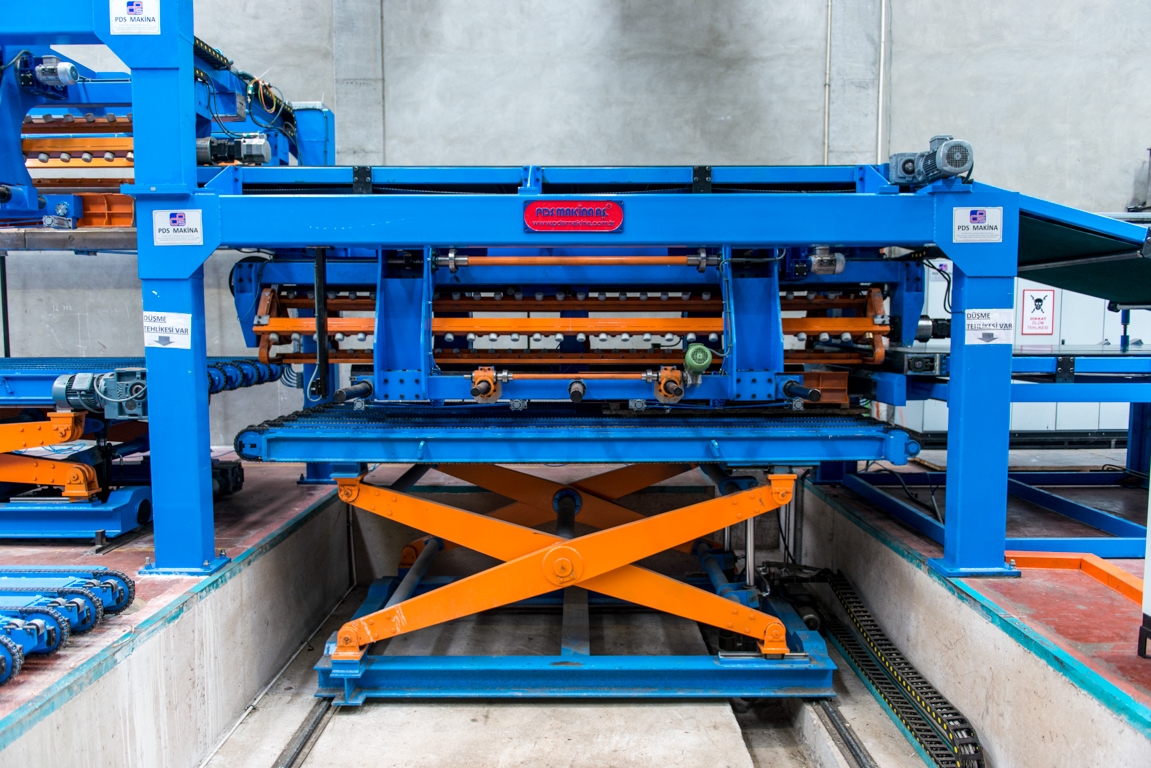

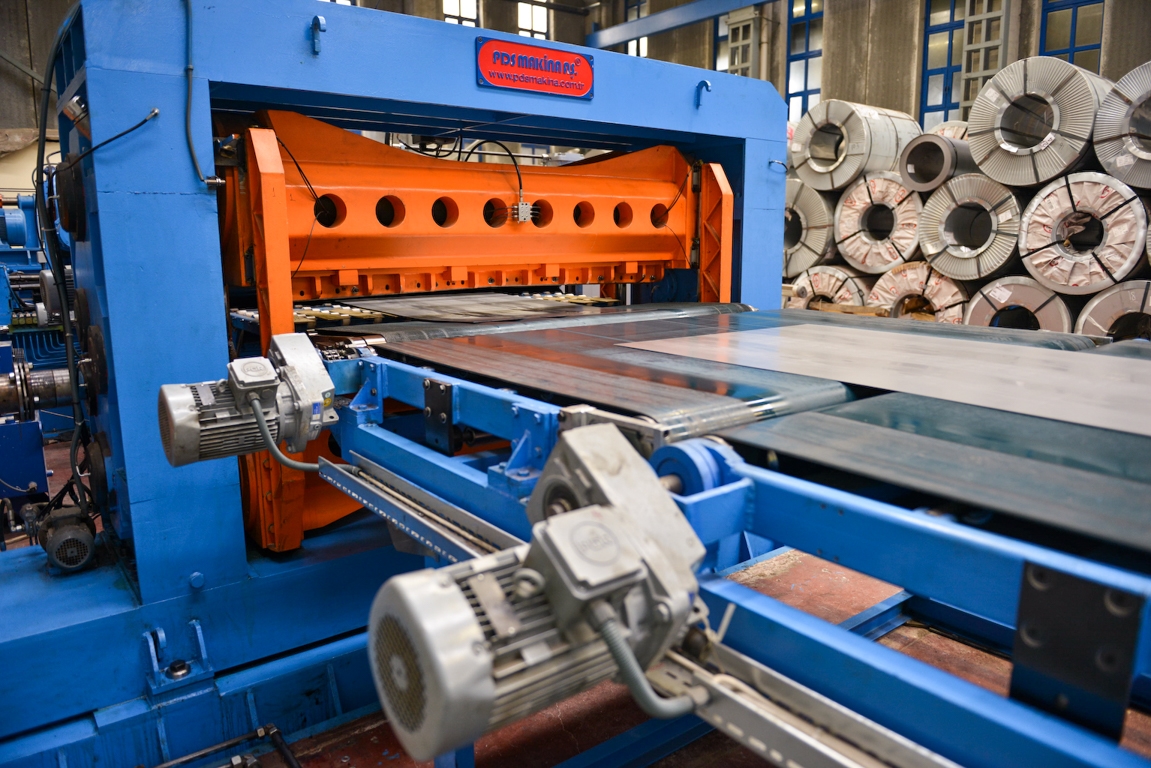

PDS Makina has been engaged in the production of top quality and efficient cut-to-length lines of various models and capacities. Coiled (rolled) raw metals are cut into sheets at desired lengths. Cutting process is carried out in accordance with the customer requirements with the appropriate levelers and rotary shear, flying shear or start-stop shear. Fully automatic packaging systems provide full automation.

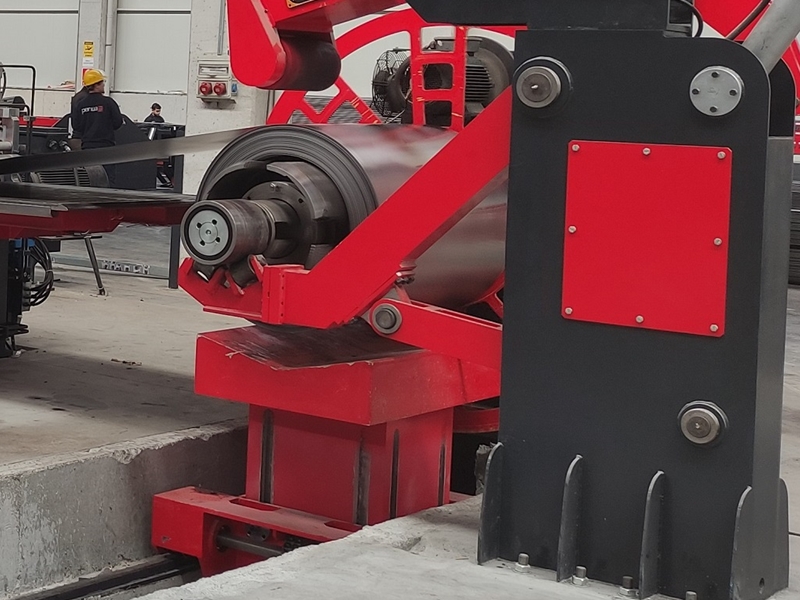

Coil Loading Car
Takes the coil from the waiting channel or the crane and carries it to the chuck of the uncoiler machine rapidly. It is directed manually by the operator.
Media
Model List
| MODELS | THICKNESS mm |
WIDTH mm |
WORKING METHOD | PACKAGING LENGTH | MAX PRODUCTION SPEED |
|---|---|---|---|---|---|
| PBK 500 5-10-15 TONS |
0,30 ~ 1,50 | 500 mm | LOOP | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 500 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 500 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 500 mm | LOOP | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 500 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 40 m/min | |
| 2,00 ~ 8,00 | 500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,50 ~ 10,00 | 500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| PBK 1000 5-10-15 TONS |
0,30 ~ 1,50 | 1000 mm | LOOP | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 1000 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 1000 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 1000 mm | LOOP | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 1000 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 1000 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 2,00 ~ 8,00 | 1000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,50 ~ 10,00 | 1000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| PBK 1250 10-15-25 TONS |
0,30 ~ 1,50 | 1250 mm | LOOP | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 1250 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 1250 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 1250 mm | LOOP | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 1250 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 1250 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 2,00 ~ 8,00 | 1250 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,50 ~ 10,00 | 1250 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 3,00 ~ 12,00 | 1250 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| PBK 1600 15-25-30-40 TONS |
0,30 ~ 1,50 | 1600 mm | LOOP | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 1600 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 1600 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 1600 mm | LOOP | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 1600 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 1600 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 2,00 ~ 8,00 | 1600 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,00 ~ 10,00 | 1600 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 2,00 ~ 12,00 | 1600 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 2,00 ~ 15,00 | 1600 mm | START-STOP / FLYING | 1000 - 12000 | 25 m/min | |
| 3,00 ~ 20,00 | 1600 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| 3,00 ~ 25,00 | 1600 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| PBK 1800 15-25-30-40 TONS |
0,30 ~ 1,50 | 1800 mm | LOOP | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 1800 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 1800 mm | LOOP | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 1800 mm | LOOP | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 1800 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 1800 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 40 m/min | |
| 2,00 ~ 8,00 | 1800 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,00 ~ 10,00 | 1800 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 2,00 ~ 12,00 | 1800 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 25 m/min | |
| 2,00 ~ 15,00 | 1800 mm | START-STOP / FLYING | 1000 - 12000 | 20 m/min | |
| PBK 2000 15-25-30-40 TONS |
0,30 ~ 1,50 | 2000 mm | START-STOP / FLYING / ROTARY | 300 - 4000 | 50 m/min |
| 0,40 ~ 2,00 | 2000 mm | START-STOP / FLYING / ROTARY | 300 - 4000 | 50 m/min | |
| 0,50 ~ 2,50 | 2000 mm | START-STOP / FLYING / ROTARY | 300 - 4000 | 50 m/min | |
| 0,60 ~ 3,00 | 2000 mm | START-STOP / FLYING / ROTARY | 300 - 4000 | 50 m/min | |
| 1,20 ~ 4,00 | 2000 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min | |
| 1,50 ~ 6,00 | 2000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 40 m/min | |
| 2,00 ~ 8,00 | 2000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,00 ~ 10,00 | 2000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 2,00 ~ 12,00 | 2000 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 25 m/min | |
| 2,00 ~ 15,00 | 2000 mm | START-STOP / FLYING | 1000 - 12000 | 20 m/min | |
| 3,00 ~ 20,00 | 2000 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| 3,00 ~ 25,00 | 2000 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| 5,00 ~ 30,00 | 2000 mm | START-STOP / FLYING | 1000 - 12000 | 20 m/min | |
| PBK 2500 15-25-30-40 TONS |
1,20 ~ 4,00 | 2500 mm | START-STOP / FLYING / ROTARY | 500 - 6000 | 40 m/min |
| 1,50 ~ 6,00 | 2500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 40 m/min | |
| 2,00 ~ 8,00 | 2500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 35 m/min | |
| 2,00 ~ 10,00 | 2500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 30 m/min | |
| 2,00 ~ 12,00 | 2500 mm | START-STOP / FLYING / ROTARY | 1000 - 12000 | 25 m/min | |
| 2,00 ~ 15,00 | 2500 mm | START-STOP / FLYING | 1000 - 12000 | 20 m/min | |
| 3,00 ~ 20,00 | 2500 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| 3,00 ~ 25,00 | 2500 mm | START-STOP / FLYING | 1000 - 12000 | 30 m/min | |
| 5,00 ~ 30,00 | 2500 mm | START-STOP / FLYING | 1000 - 12000 | 20 m/min |
